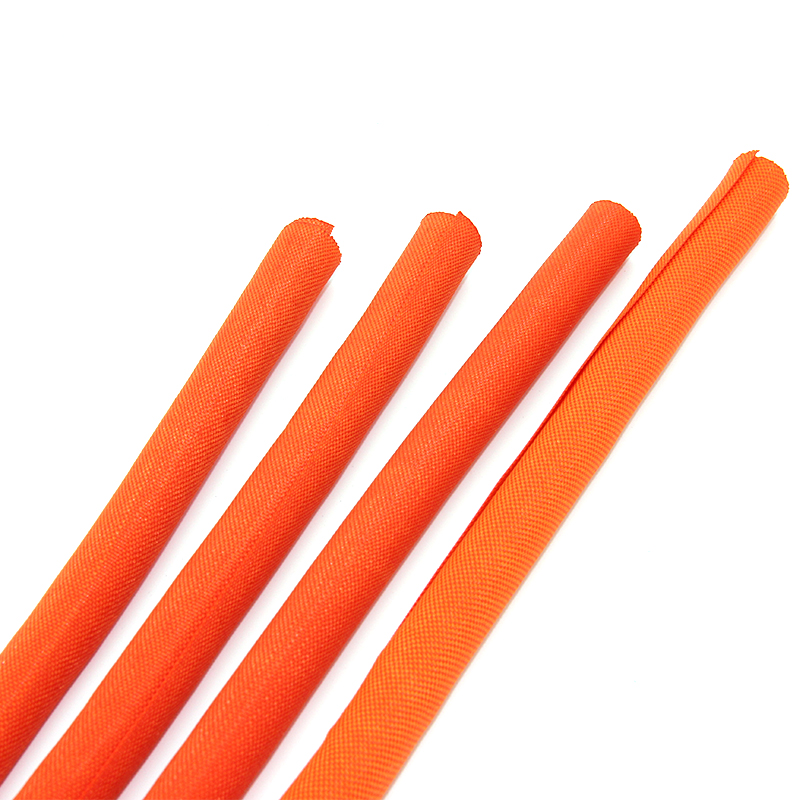

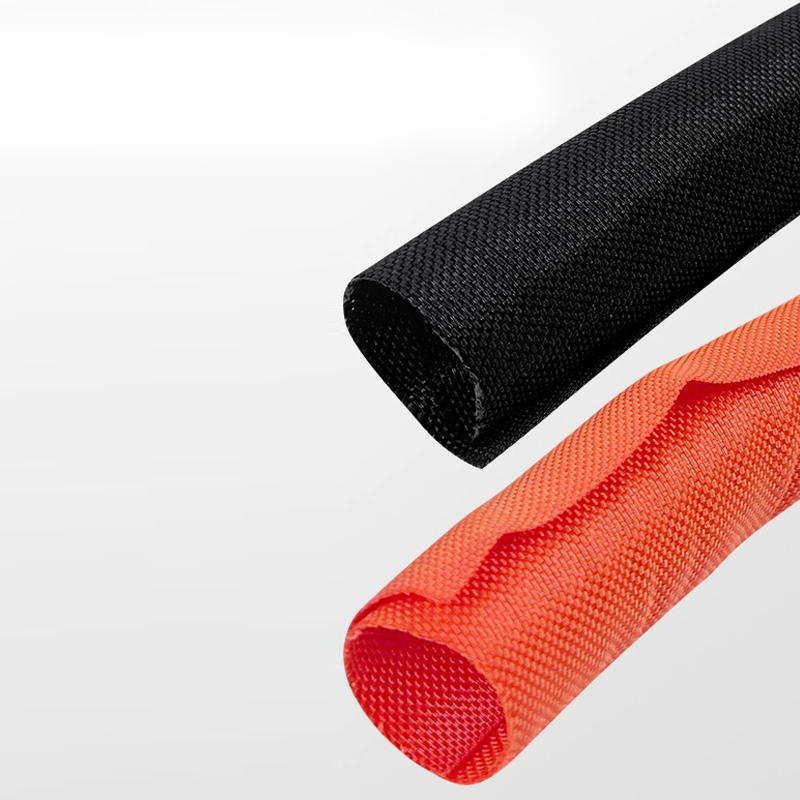

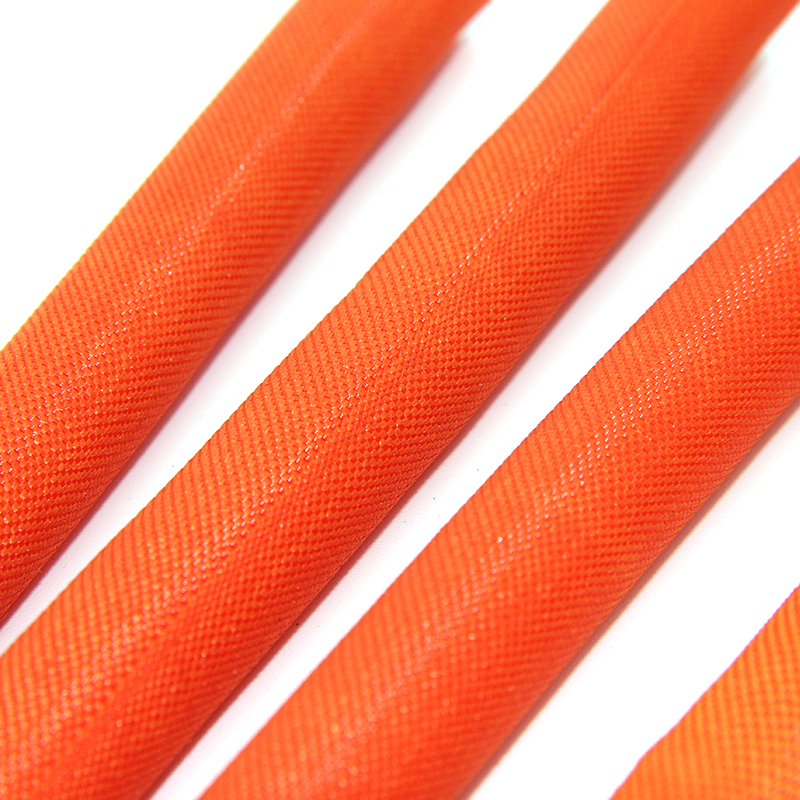

Self-wrap braided sleeving (also known as self-wrapping cable sleeve, open weave wrap-around sleeving, or self-closing braided sleeve) is an open-style protective tubing manufactured from environmentally friendly PET (polyester) monofilaments or multifilaments through precision braiding technology.



The defining feature of this sleeving is its **open self-wrapping design** – the sleeve has a longitudinal opening along its axis. Relying on the natural elasticity and tension of the braided material, the sleeve automatically curls around and encloses the wire bundle, forming a closed protective layer. No zippers, hook-and-loop fasteners, or heat shrink tools are required – installation can be done by hand. It is the ideal choice for cable protection, bundling, aesthetics, and maintenance access.



**Key Features**

| Feature | Description |

| **Self-Wrapping Closure** | Open design; automatically curls around cables using material elasticity; no zippers, Velcro, or tools required |

| **Easy Installation** | Can be **retrofit installed** over pre-assembled cables with connectors; simply snap cables into place by hand; no tools needed |

| **Easy Maintenance Access** | Open design allows quick access for inspection, repair, or rewiring; reusable without damaging the sleeve |

| **Excellent Abrasion Resistance** | PET braided construction provides superior protection against wear and tear |

| **Good Flexibility** | Soft and highly flexible; adapts to complex routing paths, especially for bends and corners |

| **Flame Retardant & Eco-friendly** | UL94 VW-1 flame rating; RoHS compliant |

| **Wide Temperature Range** | Operating temperature from -50℃ to +150℃; suitable for harsh environments |

| **Chemical Resistance** | Resists gasoline, oils, solvents, and UV exposure |



**Material & Construction**

– **Material**: Standard PET (polyester) monofilament / multifilament

– **Construction**: Precision braided open-weave self-wrapping design



**Key Difference from Expandable Braided Sleeving**

Self-wrap sleeving and expandable braided sleeving are often confused. The core differences are:



| Comparison | **Self-Wrap Sleeving** | Expandable Braided Sleeving |

| **Structure** | Open longitudinal seam | Fully closed (no seam) |

| **Closure Method** | Self-wrapping (material elasticity) | N/A (already closed) |

| **Installation** | **Side-load** (snap cables in through opening) | End-feed or expand to slide over |

| **Maintenance Access** | **Excellent** (open to access cables anytime) | Poor (must remove or cut open) |

| **Best For** | Applications requiring **frequent maintenance, modification, or inspection** | One-time installation, long-term stationary cables |

| **Connector Compatibility** | **Direct snap-in** (unaffected by connector size) | Expand to slide over (limited by expansion ratio) |



>*Quick distinction**:

> – **Self-Wrap Sleeving** = Open seam + self-wrapping → **Side-load installation** → Best for maintenance access

> – **Expandable Sleeving** = Fully closed + expandable → **End-feed/axial installation** → Best for permanent installation



**Applications**

Self-wrap sleeving is widely used across multiple industries:



| Application Field | Specific Uses |

| **Automotive** | Engine wiring protection, main and branch wire harnesses, sensor cables; especially for bends and corners |

| **Rail Transportation** | High-speed rail, subway, light rail vehicle wire harness protection and management |

| **Electronics** | Computer power cables, internal PC wiring, display cables, appliance wiring |

| **Telecommunications** | Communication cables, base station cable management |

| **Industrial Equipment** | Automation equipment, robotic arms, industrial control cabinet wiring |

| **New Energy** | EV high-voltage cabling, energy storage system internal wiring |

| **Aerospace** | Aircraft wire harnessing (select certified products) |

| **Military & Defense** | Military vehicle and naval equipment cable protection |



**Key Advantages**

**1. Extremely Simple Installation – “Side-Load” Design**

The greatest advantage of self-wrap sleeving is the ability to **snap cables in from the side**. Whether for new assembly or pre-assembled cables with connectors already attached, simply push the cable bundle through the opening – the sleeve automatically wraps around it. **No tools required, no connector disassembly** – complete installation by hand.



**2. Easy Maintenance Access – Reusable**

This is the standout advantage of self-wrap sleeving over other cable protection options. When internal cables need inspection, repair, or replacement, simply peel open the sleeve along the seam, perform the work, and snap it closed again. **No sleeve damage, no reinstallation** – significantly reducing maintenance time and cost.



**3. Excellent Bend & Corner Adaptability – Solves Traditional Tubing Pain Points**

Traditional corrugated tubing often presents challenges when routing around bends, corners, and intersections – requiring significant effort and increasing installation difficulty. Self-wrap sleeving, with its flexibility and open design, easily adapts to complex routing paths, making it ideal for applications requiring frequent bends and corners.



**4. Protection & Aesthetics Combined**

– **Protection**: Prevents cables from sharp edges, abrasion, moving parts, dust, and oil

– **Aesthetics**: Neatly organizes cables for a clean, professional appearance



**5. Flexible Sizing**

Self-wrap sleeving offers good expandability, allowing one size to cover a range of bundle diameters and reducing inventory SKUs.



**Cutting & Processing**

– **Recommended Tool**: Hot knife – melts and seals the cut edge to prevent fraying

– **Special Products**: Some coated products can be cut with standard scissors



**Colors & Customization**

– **Standard Colors: Black, gray, blue, yellow, orange, etc.

– **Customization: Custom widths, colors, and patterns available upon request

Standard Colors: Black, gray, blue, yellow, orange
